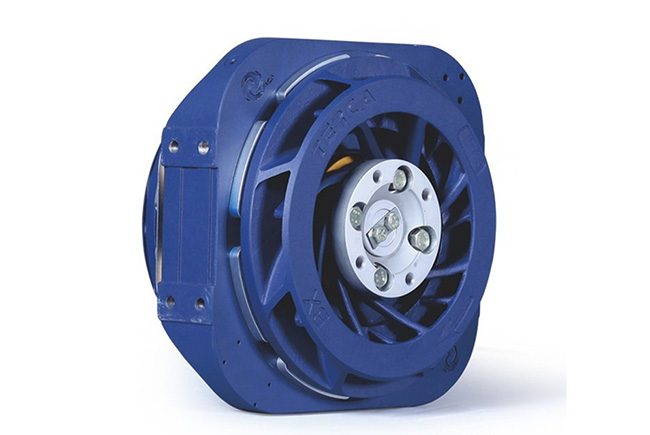

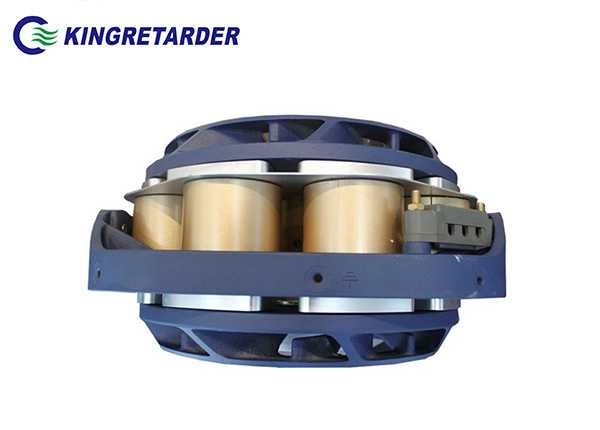

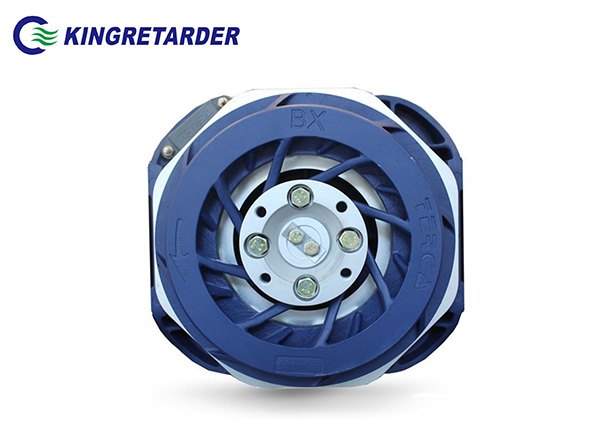

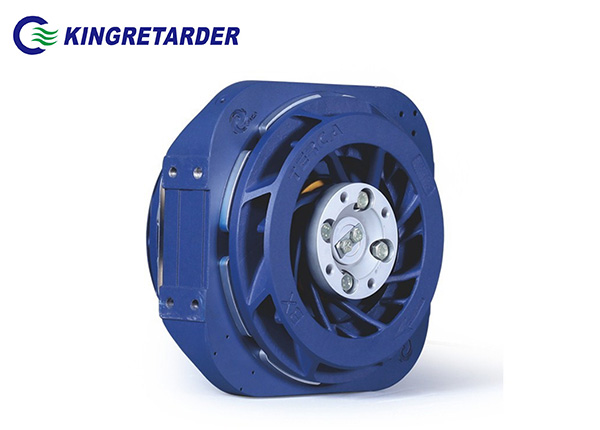

TM Series Model | Dimensions (W×H×D) (mm) |
Gross Weight (kg) | Rated Voltage (V) | Rated Current (A) | Braking Torque(N·m) |
TM05 | 405×392×221.5 | 90 | 24 | 55 | 500 |
TM10 | 500×490×265 | 165 | 24 | 75 | 1000 |
TM12 | 500×490×256 | 165 | 24 | 85 | 1200 |
TM19 | 590×566×376 | 318 | 24 | 95 | 1900 |
TM23 | 590×566×376 | 316 | 24 | 123 | 2300 |
TM27 | 590×566×376 | 375 | 24 | 135 | 2700 |
